BC1200ECO

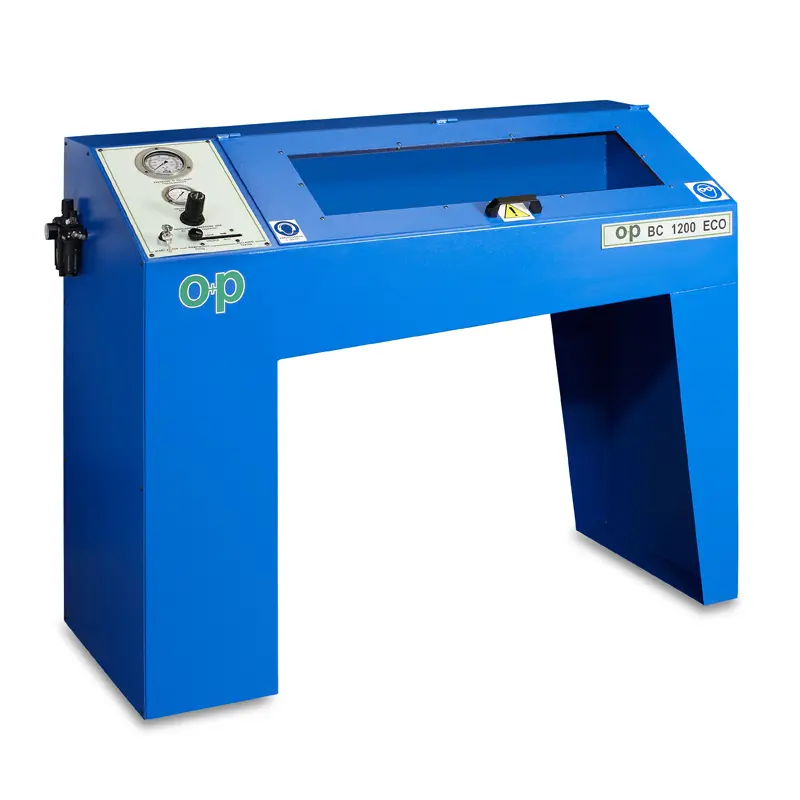

GET PRICINGTest bench up to 1200 bar, small and easy to use, provided with a Ø 1/4'' gas quick coupling, analogue pressure gauge and pneumo-hydraulic pump. Pressure control and discharge, testing and liquid filling are manually performed.Product specifications could be modified without prior notice.
- STATIC PRESSURE1200 bar (17400 psi)
- MINIMUM STARTING PRESSURE70 bar (1015 psi)
- PRESSURE CONTROLManual
- TEST PROCEDUREManual
- TYPE OF DRIVEPneumatic intensifier
- TESTING LIQUIDFluid
- MANIFOLDS N.1
- N. OF MANIFOLD CONNECTIONSNr. 1 special quick connection
- LIQUID FILLINGManual
- FILLING RATE0,3 Lt/min (0.08 US Gal/min)
- PRESSURE RELEASEManual
- STANDARD TESTING CHAMBER DIMENSIONS1200x550x250 mm (47.2''x21.6''x9.8'')
- BENCH DIMENSIONS1500x600x1200 mm (59''x23.6''x47.2'')
- TANK30 Lt (8 US Gal)
- WEIGHT WITHOUT OIL165 Kg (363 Lbs)
- DELIVERY FILTERincl.
- SHOCKPROOF CONTROL WINDOWSincl.
- OIL-RESISTANT NETincl.
- SUCTION FILTERincl.
OPTIONAL
