Home» BC1200ES/WATER - BC2000ES/WATER
BC1200ES/WATER - BC2000ES/WATER

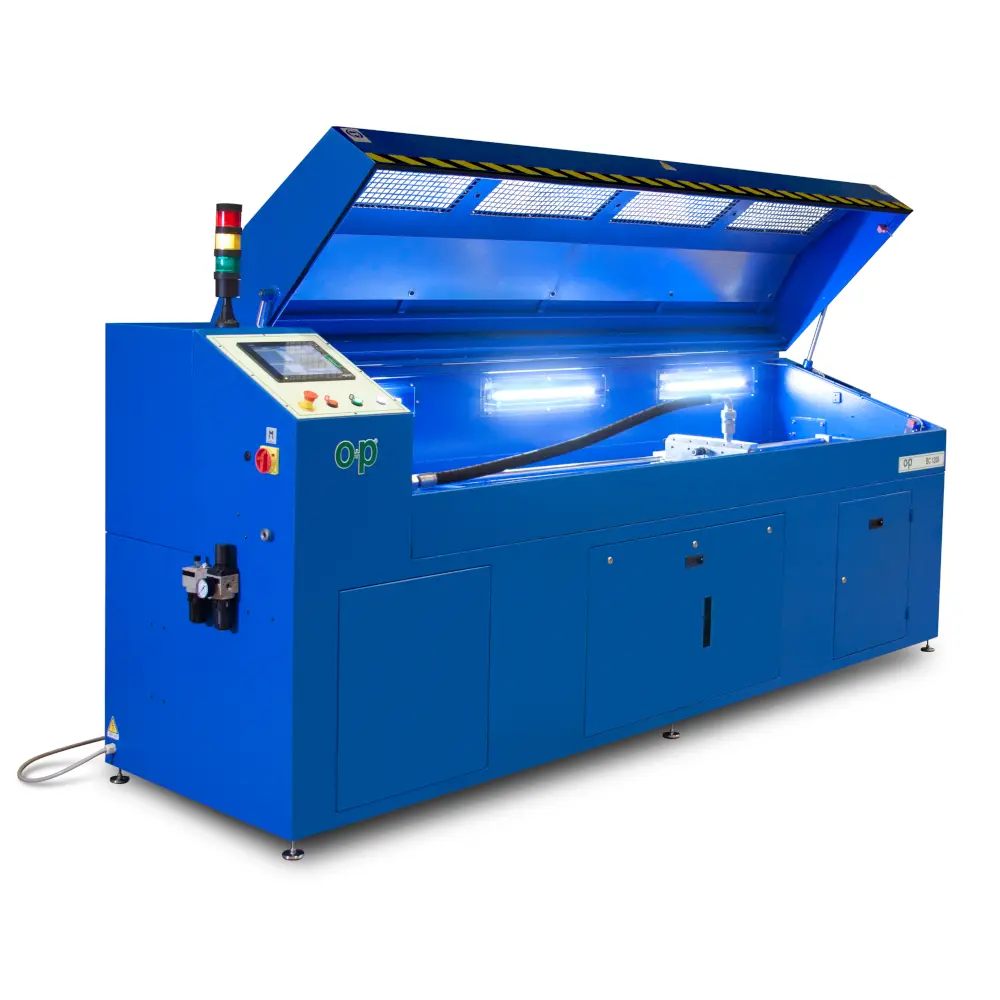

GET PRICING1200 and 2000 bar water test bench provided with pneumo-hydraulic pump. Automatic door opening and luminous signal. Lighted internal chamber protected by a shock-proof testing window; oil-protecting mesh and shelve for tools. Static and dynamic pressure by air-oil pressure multiplier. PLC control. Chamber and components are made in stainless steel.Product specifications could be modified without prior notice.
- STATIC PRESSURE1200-2000 bar (17400 - 29000 psi)
- DYNAMIC PRESSURE1200-2000 bar (17400 - 29000 psi)
- MINIMUM STARTING PRESSUREBC1200: 30 bar BC2000: 50 bar (725 psi)
- PRESSURE CONTROLAutomatic
- TEST PROCEDUREAutomatic
- TYPE OF DRIVEPneumatic intensifier
- TESTING LIQUIDWater
- MANIFOLDS N.2
- N. OF MANIFOLD CONNECTIONS15x1/4'' BSP
- LIQUID FILLINGAutomatic
- FILLING RATE17 Lt/min (4.5 US Gal)
- HOSE EMPTYING SYSTEMAutomatic
- PRESSURE RELEASEAutomatic
- PRESSURE DISPLAYDigital
- STANDARD TESTING CHAMBER DIMENSIONS2200x900 mm (86.6''x 35.4'')
- BENCH DIMENSIONS2700x980x1700 mm (106.2''x38.5''x66.9'')
- TANK100 Lt (26 US Gal)
- STANDARD VOLTAGEANY 60HZ 3PH
- WEIGHT WITHOUT WATER976 KG (2150 Lbs)
- USB CONNECTIONincl.
- SHOCKPROOF CONTROL WINDOWSincl.
- DELIVERY FILTERincl.
- PDF FILES PRINTINGincl.
- MECHANICAL DOOR SAFERY DEVICEincl.
- LEVEL ALARMincl.
- INTERNAL LIGHTINGincl.
- AUTOMATIC DOOR OPENINGincl.
- AUTOMATIC CONTROL WITH PLCincl.
- SHELVESincl.
- SUCTION FILTERincl.
- PRESSURE PEAK MEMORYincl.
- SLIDING MANIFOLDSincl.
OPTIONAL
