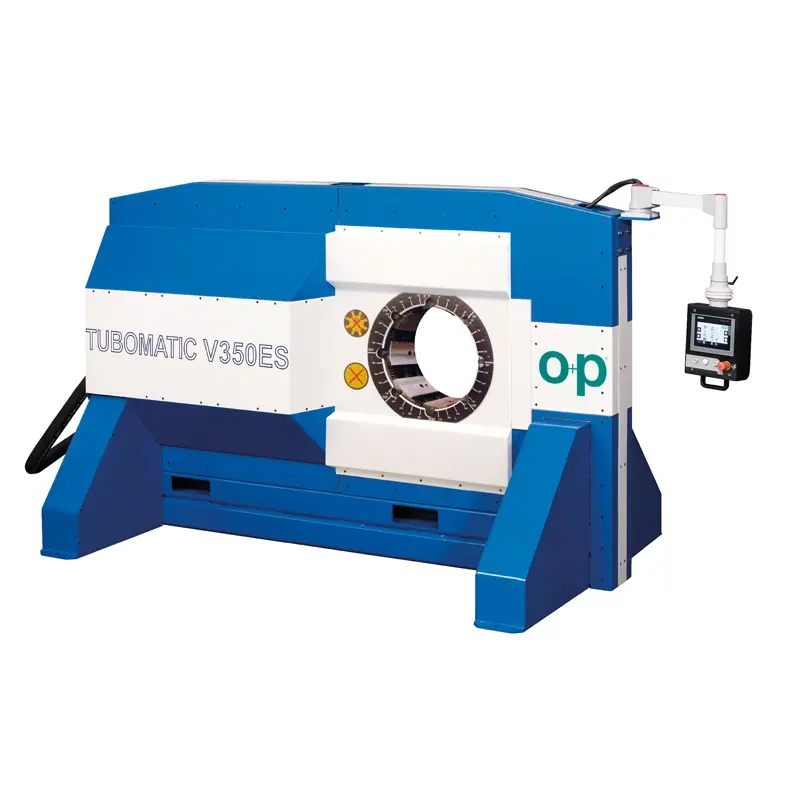

TUBOMATIC V350 ES
GET PRICINGWith a crimping force of 1000 ton, the crimper Tubomatic V350 ES is able to crimp industrial hoses up to 12'' with big flanges, but it can also be used for crimping insulators and rebar couplers that require a high crimping force.
MAIN FEATURES:
- ES4 Siemens PLC control with 7'' color touch-screen display;
- self lubricating moving components;
- silent pump;
- particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings;
- protractor for fittings orientation;
- separate hydraulic power pack included.
Product specifications could be modified without prior notice.
- CRIMPING FORCE1000 TON (1100 US TONS)
- 6 SPIRALS 2 PIECES3''
- INDUSTRIAL HOSE12''
- MAXIMUM DIAMETER350 mm* (13.7'')
- DIE OPENINGØ + 155 mm (Ø + 6.1'')
- OPENING WITHOUT DIES468 mm* (18.4'')
- STANDARD VOLTAGEANY 60HZ 3PH
- CLOSING SPEED7 mm/sec (0.2''/sec)
- CRIMPING SPEED1 mm/sec (0.03''/sec)
- OPENING SPEED40 mm/sec (1.5''/sec)
- MOTOR POWER15 Kw (20 Hp) A=27,80
- DIMENSIONS L x W x H2935x1750x1650 mm (64.9''x68.8''x115.5'')
- WEIGHT WITHOUT OIL10.000 Kg (22046 Lbs)
- OIL (NOT INCLUDED)300 LT ( 79 US gal)
- HYDRAULIC POWER UNIT DIMENSIONS L X W X H1245x755x1370 mm (49''x29.7''x53.9'')
- HYDRAULIC POWER UNIT WEIGHT463 Kg (1021 Lbs)
- HYDRAULIC POWER UNIT SEPARATE FROM THE MACHINEincl.
- ELECTRONIC TOUCH SCREEN CONTROLincl.
- PROTRACTOR FOR FITTINGS ORIENTATIONincl.
- MAINTENANCE COUNTER FOR PERIODIC SERVICE NOTIFICATIONincl.
- CONNECTION ES4-PCincl.
OPTIONAL
